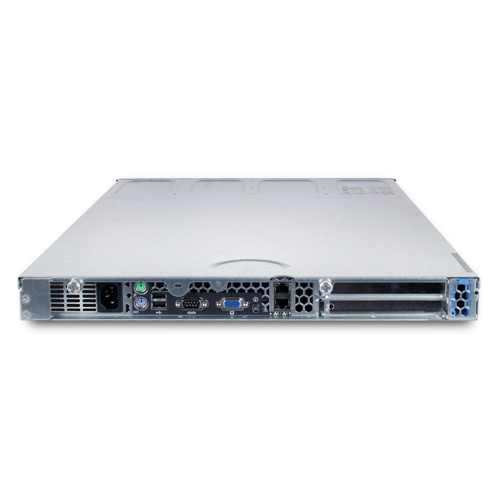

AccuNAS AN104LS - Linux NAS + iSCSI 1U 4 Bay Storage Rackmount Server
[Sans Digital AN104LS]
  $1,679.00
Available Options:
Condition:
Drive Option:
Warranty:

Reviews


Product Description

AccuNAS AN104LS - Linux NAS + iSCSI 1U 4 Bay Storage Rackmount Server

Overview

The AccuNAS AN104LS Linux Series offers comprehensive NAS in a feature-dense 1U server with Intel CPU. A performance tuned Linux-based server operating system with unlimited clients, up to 4TB storage, PCI-X expansion, and dual Gigabit Ethernet let AccuNAS satisfy any network storage need. Get enterprise-class features and stability with AccuNAS series.





Features

Dual Gigabit with RAID 5 Support
Designed with high availability and low TOC in mind, AccuNAS Linux edition is built with simple setup and maintenance features. Installation wizard for easy implementation, convenience web-based management for local or remote configuration, Dual 10/100/1000 network support for teaming or redundant networking, and RAID 5 support for your date storage make AccuNAS a simple trouble free unit.

Feature Rich Network Storage
In comparison to other NAS units in the market, AccuNAS is bundled with many additional advanced features at no additional charge. iSCSI target support for server side iSCSI applications, iSCSI initiator support for easy future expansion, NAS to NAS folder replication, scheduled or on-demand volume snapshot, and local tape backup support  just to name a few.

Features

  • Linux based OS specifically made for NAS application.
  • 3.06GHz Celeron D CPU or above.
  • 512MB DDR2 Memory or above, upgradeable to 8GB maximum.
  • Up to 4TB of storage capacity, support latest 1TB SATA II hard drive.
  • RAID 0, 1 and RAID 5
  • Dual Gigabit Ethernet.
  • Convience Setup and easy maintainance.
    • NAS discovery tools for easy deployment.
    • Web GUI configuration interface supporting Internet Explorer and Firefox browers.
    • Informational Event Log for diagnostic.
    • Support Local user account.
    • Support Windows Active Directory Service or Primary Domain Server and Workgroup.
    • HTTPS/SSL service supported.
  • Storage protection.
    • Designed with Linux based Journaling file system (XFS & Resfs).
    • NAS to NAS replication supporting scheduled with multiple version or full replication with bandwith control.
    • Support scheduled or on-demand volume snapshot.
    • NAS system configuration backup and restore.
    • Support Local Tape backup, 3rd party backup agent.
  • iSCSI Target.
    • Support iSCSI target and initiator

Specifications

 Model  AN104LS Series
 Form Factor  1U Rackmount
 Processor  3.06 Ghz Celeron D or Above
 Memory  512MB DDR 2 ECC Memory, Upgradeable to 8GB
 RAID Level  Build-in RAID 0,1, and 5 Support
 Maximum Capacity  4TB
 Available Expansion Slot  1 x PCI-X 133
 Hot-Swappable  Yes
 Chipset  Intel E7230 (Mukiteo) / 82801GR (ICH7R)
 Network  On-board 2 x 1000/100/10 (Broadcom BCM5721J)
 Supports Teaming over 2 ports
 Hard Drive Trays Supported  4 x SATA HDD trays
 Hot-Swappable  Hot-Swap Support
 Cooling Fans  2 x System Blower Fans for CPU and
 Memory 1 x 4cm Fan for PCI slots
 Power Supply  345W Power Supply (Delta), PFC Auto switch for
 100 ~ 127V and 200 ~ 240V; 50 ~ 60Hz
 Status Indicators  Power LED, Network LED, HDD LED
 Dimension (in)  1.68” H x 16.73” W x 23.5” D
 Weight (lb)  26 lb with HDDs installed (Sliding rail included)
 Certifications & Compliance  FCC, CE, UL, RoHS
 Limited Warranty  2 Year

Available Models

 Model Name  AN104LS  AN104LS1T  AN104LS2T AN104LS3T  AN104LS4T
 OS  Linux 2.6.xx based OS specificaly made for NAS application
 CPU  3.06 Celeron D or above
 Memory  512 MB DDR-2 ECC Memory
 RAID Structure  RAID Support RAID 0, 1, and 5
 Avaliable
 Expansions Slot
 1 x PCI-X 133
 Hard Drives Trays  4 * Hot-Swappable SATA Hard Drive
 Hard Drives  No HHD
 Bundle
 250GB
 HDD * 4
 500GB
 HDD * 4
 750GB
 HDD * 4
 1TB
 HDD * 4
Total Storage  up to 4TB  1TB  2TB  3TB  4TB
